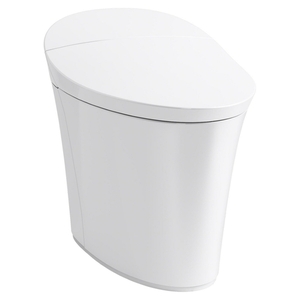

Kohler K5401-PA-0 "Veil" One Piece Toilet

Item: K5401-PA-0
Finish: White
Online Availability: Please call for availability.


Details and Dimensions

Toilet Configuration One Piece
Toilet Bowl Type Elongated bowl
Toilet Installation Type Floor Mounted
Height to Rim 16-1/8"
Width 17-1/4"
Depth 26-1/8"
Water Depth From Rim 7-15/16'' x 5-5/8''
Flush Type Dual
Flush Technology Dual Flush
Gallons Per Flush 0.8 / 1.28
Rough In Dimension 12"
Toilet Seat Included Yes
Concealed Trapway Yes
Trapway Finish Glazed
Trapway Size 1-15/16"
Construction Vitreous China
Hands Free Activation Yes
ADA Compliant Yes
Eco Friendly Water Sense
CEC Approved Yes
Features Comfort Height, Quiet-Close
Includes Seat, supply stop valve, braided inlet hose, power cord, and LCD remote control.
Additional Information Heated seat with adjustable temperature settings
Self-cleaning function uses UV light and electrolyzed water systems to sanitize the wand surfaces
Tankless design with direct water supply
Motion-activated, hands-free opening/closing of seat and cover
Warm-air drying system with adjustable temperature settings
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate and oscillate functions
LED lighting illuminates the bowl to serve as a night-light
Automatic deodorization system
Front and rear wash modes provide warm water for cleansing
Compact, streamlined one-piece intelligent toilet with integrated personal cleansing
Amperage 15 Amps
Requires Dedicated Electric Circuit Yes
Voltage 120V
